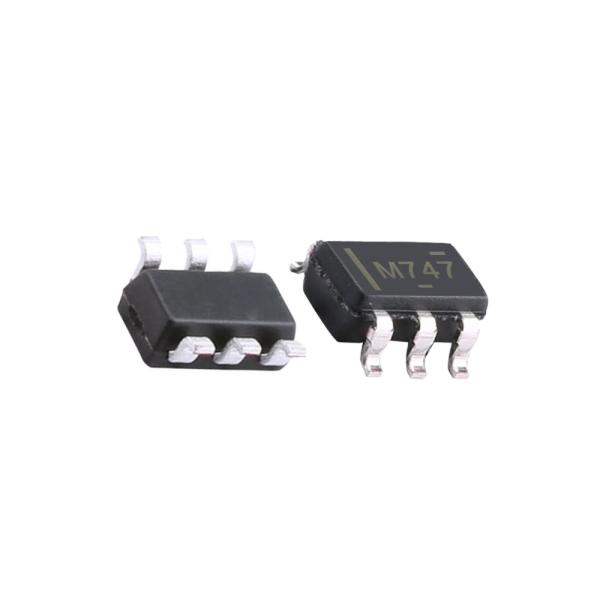

    Buy cheap IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers from wholesalers

    Buy cheap IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers from wholesalers
    • Buy cheap IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers from wholesalers
    • Buy cheap IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers from wholesalers
    • Buy cheap IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers from wholesalers

    IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers

    Ask Lasest Price
    Brand Name : TI
    Model Number : LM74700QDBVRQ1
    Price : RFQ
    Payment Terms : T/T, Western Union, escrow, Paypal, Visa, MoneyGram
    Supply Ability : RFQ
    Delivery Time : Immediately
    • Product Details
    • Company Profile

    IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers

    IC Integrated Circuits LM74700QDBVRQ1 SOT-23-6 Hot Swap Voltage Controllers


    Product Description:

    The LM74700-Q1 is an automotive AEC Q100 qualified ideal diode controller which operates in conjunction with an external N-channel MOSFET as an ideal diode rectifier for low loss reverse polarity protection with a 20-mV forward voltage drop. The wide supply input range of 3.2 V to 65 V allows control of many popular DC bus voltages such as 12-V, 24-V and 48-V automotive battery systems. The 3.2-V input voltage support is particularly well suited for severe cold crank requirements in automotive systems. The device can withstand and protect the loads from negative supply voltages down to –65 V. The device controls the GATE of the MOSFET to regulate the forward voltage drop at 20 mV. The regulation scheme enables graceful turn off of the MOSFET during a reverse current event and ensures zero DC reverse current flow. Fast response (< 0.75 µs) to Reverse Current Blocking makes the device suitable for systems with output voltage holdup requirements during ISO7637 pulse testing as well as power fail and input micro-short conditions. The LM74700-Q1 controller provides a charge pump gate drive for an external N-channel MOSFET. The high voltage rating of LM74700-Q1 helps to simplify the system designs for automotive ISO7637 protection. With the enable pin low, the controller is off and draws approximately 1 µA of current.


    Application:

    • Automotive ADAS systems - camera • Automotive infotainment systems - digital cluster, head unit • Industrial factory automation - PLC • Enterprise power supplies • Active ORing for redundant power


    Parameter Table:

    Product AttributeAttribute Value
    Manufacturer:Texas Instruments
    Product Category:Hot Swap Voltage Controllers
    RoHS:YES
    Current Limit:2.3 A
    Supply Voltage - Max:65 V
    Supply Voltage - Min:3.2 V
    Mounting Style:SMD/SMT
    Package / Case:SOT-23-6
    Brand:Texas Instruments
    Product Type:Hot Swap Voltage Controllers
    Series:LM74700-Q1
    Factory Pack Quantity:3000
    Subcategory:PMIC - Power Management ICs

    FAQ:

    • Whats your MOQ?

    No MOQ needed, and if you buy more, will enjoy better prices.

    • Can i get a free sample?

    You can ask our staff for apply free samples.

    • What payment methods do you support?

    We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

    • What about the shipment methods?

    We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

    • How will you Guaranteed quality?

    Quality Warranty Period:12 Months.

    • Are the products tested before shipment?

    All products were tested before shipment, and the quality problems were negligible.

    • Do you provide BOM services?

    Yes, We provide one-stop purchase service, Please send us your Bom List
